Product Details:
Payment & Shipping Terms:
|
| Weight: | 12300(kg) | Overall Size(Frame)/L*W*H/mm: | 12192*2438*2591 |
|---|---|---|---|
| Tank Volume: | 36 Cubic | Tank Material: | Head 304L/8mm, Cylinder 304L/8mm |
| Rated Speed: | 2200rpm | Rotating Speed: | 740r/min |
| Core Components: | PLC, Pressure Vessel, Pump | Beam Material: | Q235/8mm |
| Ultimate Vacuum: | 0.093Mpa | Maximum Pumping Speed: | 42 Cubic Meters/min |
| Power: | 90KW | Total Pump Weight: | 460KG |
| Engine Brand: | Weichai | ||
| High Light: | CSC 36 Cubic Liquid Tank Container,Liquid Tank Container 90KW,90KW ISO Bulk Liquid Container |
||

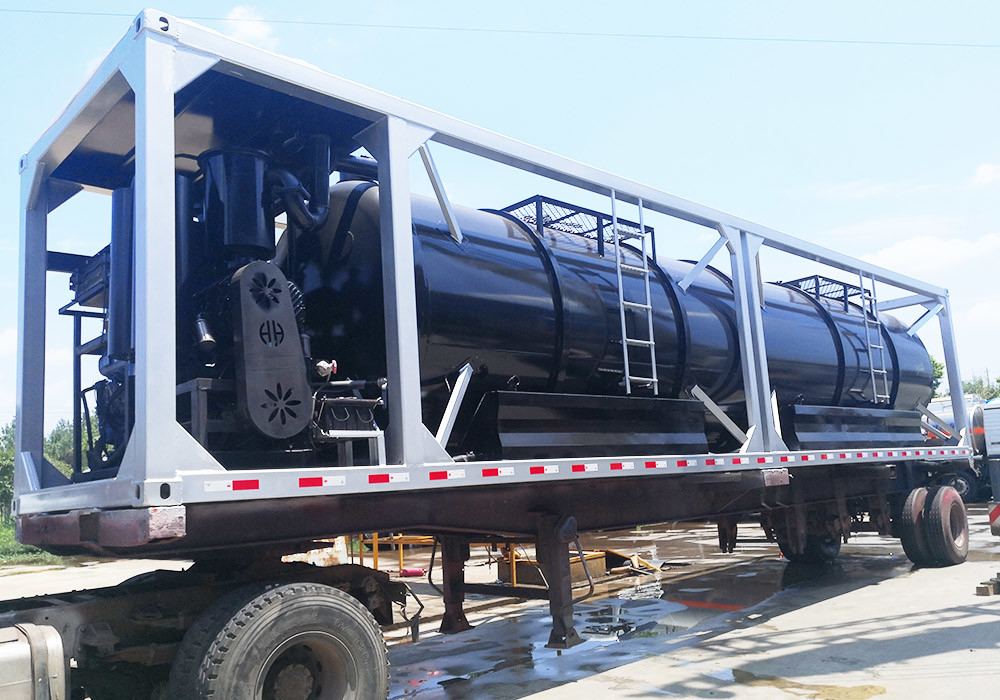

China factory customized high-end 36 cubic vacuum sewage suction tank container with pump and engine
Liquid storage tank container is widely used in industries for liquid transportation on the road/ rail/ ship
and storage.ISO tank container:
1. Inner layer - made of 6 or 8 mm thick Q235-B steel plate, compared with ordinary 5 mm thick
single-layer tank, the strength is greatly improved;
2.Outer layer - tempered glass fiber thickness of 4.0mm or more, good compressive and seismic
resistance. It has strong corrosion resistance and corrosion resistance.
Unique technology is adopted between the inner and outer layers to make it reach a gap of 0.1-1mm,
so as to eliminate hidden dangers from the root.
Leak detector 24 hours to monitor, to prevent leakage caused by security risks.
parameter:
| product Overview | |||
| product name | 36 cubic sewage suction tank | model | LSXC9400GXW |
| Transport medium | Liquid dirt | Volume | 36 cubic |
| Overall dimensions(mm) | 12192*2438*2591 | Tank size(mm) | 10400*diameter 2100 |
| Weight (kg) | 12300 | Load (kg) | 36000 |
| Production cycle | 30 days | Warranty/Certificate | Have |
| Product parameters (main configuration) | |||
| Item | Specification | Remark | |
| Tank material | 304L/8mm | ||
| Beam material | Q235/8mm | ||
| shape | Round | ||
| Tank volume | 36 cubic | ||
| Tank material | Head 304L/8mm, cylinder 304L/8mm | ||
| Vacuum pump | Water ring vacuum pump | ||
| Ultimate vacuum | 0.093Mpa | ||
| Rotating speed | 740r/min | ||
| Maximum pumping speed | 42 cubic meters/min | ||
| power | 90KW | ||
| caliber | Import: DN150, Export: DN150 | ||
| Water consumption | 100-150L/min | ||
| Total pump weight | 460KG | ||
| Auxiliary engine | WD12.220 | With one-key start | |
| Engine brand | Weichai | ||
| Fuel type | diesel fuel | ||
Liquid storage tank container is widely used in industries for liquid transportation
on the road/ rail/ ship and storage.ISO tank container:
1. Inner layer - made of 6 or 8 mm thick Q235-B steel plate, compared with
ordinary 5 mm thick single-layer tank, the strength is greatly improved;
2.Outer layer - tempered glass fiber thickness of 4.0mm or more,
good compressive and seismic resistance. It has strong corrosion
resistance and corrosion resistance.
Unique technology is adopted between the inner and outer layers
to make it reach a gap of 0.1-1mm, so as to eliminate hidden dangers from the root.
Leak detector 24 hours to monitor, to prevent leakage caused by security risks.
Product advantages:
1: We can provide different sizes of tank containers from 20 FT to 40 FT, and can accept
customized any special tank containers.
2. iso tank containers, acid, soda, liquefied petroleum gas and other tank containers. Various
chemicals can be transported and stored
3. Our iso tank containers are mainly exported to Africa, Asia and South America, such as
Nigeria, Ghana, Kenya, Vietnam, Peru, etc. Our tank containers can also be exported all
over the world because our standard tank containers are of international standard.
Product details:
1). cutting materials for preparing oil tanks manufacture
2). rolling machines for circling
3). welding and NDT(non-defection test) inspection
4). re-circling after welding
5). outer vessel’s abrasive blasting and anti corrosive painting for outside surface
6). pipe connecting and assembly of inner vessel and outer vessel
7). valves installation
8). perlite filling
9). vacuum-pumping
10). final painting and ready for shipment
Certificate
Factory Tour:
Our factory with more than 20 years' experience. Being famous in domestic and foreign countries, we
concentrate on tank container and trailer's research and development. Our aim is to provide high
quality and low price products for the customer. Experienced and technological team customize
the best productions for customers. For any reliability& safety and economic related questions,
we all have mature solutions at any time.
FAQ:
Q: What kinds of tank containers could you provide?
A: 20ft ISO tank container, like standard liquid tanks, electrical heating tanks, reefer tanks, food grade
tanks, baffle tanks, swap tanks, gas tanks, H2O2 tanks, AHF tanks, bitumen tanks, different types
of lining tanks, etc, and 10ft tanks, offshore tanks, IBC/SBC ,etc.
Q: Do you have the certificates to meet us the transportation ways of the Land Truck, Sea Boat and
Railway?
A:Yeah,of course, but the price will be very different by different transportation ways; So kindly please
let me know your exact transportation ways before the quoting; And also the certificates will be ready
after the tank container passed all kinds of the testing &inspection.
Q: Can I have the drawings of this ISO storage tank containers?
A:Yeah, the existing simple similar drawings of the tank container for your reference only for the
beginning, will make the more precise drawings after getting the down payment, and will send this
drawing to you for your confirmation before production.
Q: Can I make the discharging valves at the bottom?
A:Yes,the discharging valves can be at the bottom or at the top, you can choose as your actual request.
Q:Are your 20ft iso tank container brand new?
A:Yes, all the container we provided are brand new. In fact, we will produce new container after
order confirmation.
