Product Details:
Payment & Shipping Terms:
|
| External Dimensions(l X W X H)(mm): | 6058*2438*2591/mm | Internal Dimensions(l X W X H)(mm): | 5898*2352*2393/mm |
|---|---|---|---|
| Test Pressure: | 6Bar | Nominal Thickness Of Shell: | 5mm |
| Nominal Thickness Of Head: | 6mm | Warranty: | 1 Year |
| Frame Material: | Q235B | Design Temperature Range: | -40℃~ +130 ℃ |
| High Light: | Liquid Tank Container 20GP,BV Liquid Tank Container,20GP 20 Ft Iso Tank Container Tare Weight |
||

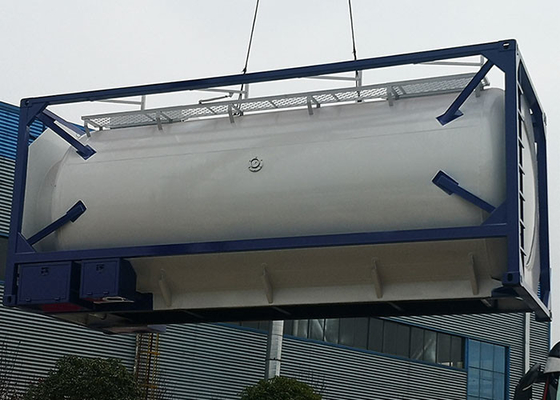

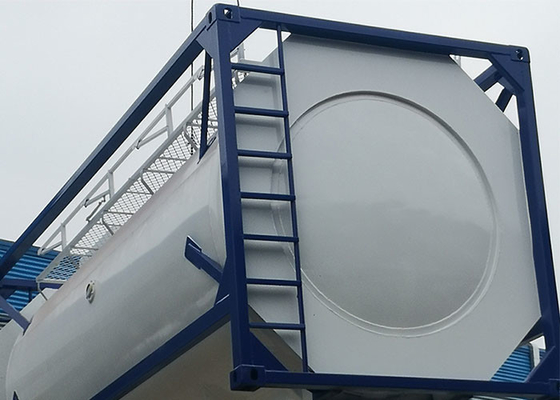

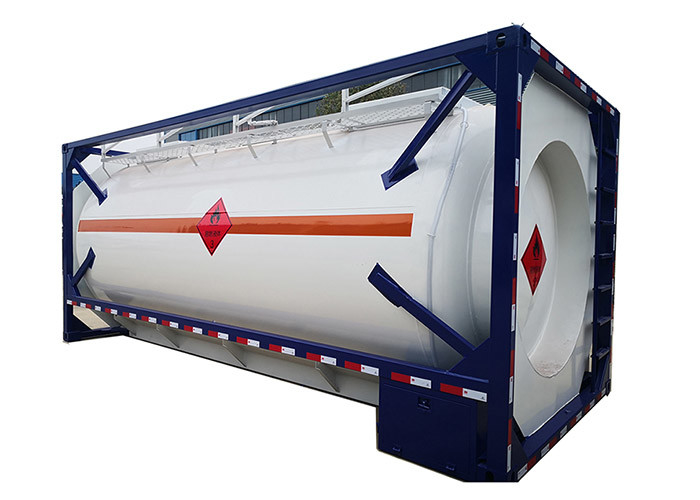

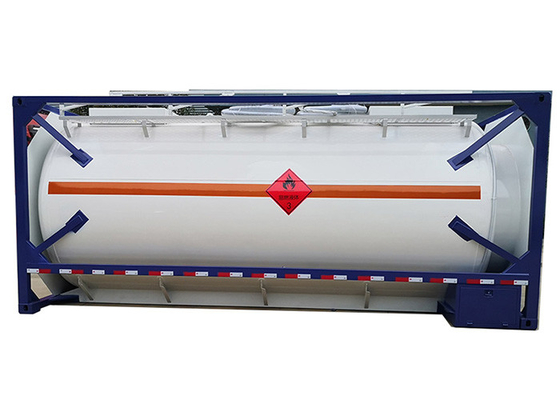

1. 20000liters 20GP ISO Tank
2. Carbon steel or Aluminum alloy 5182
3. Thickness:tanker:4mm,head :5mm
4. we can do it according to your orders
| Tank Type | 20’ ISO full frame collar tank | |
| Frame Dimensions | 20’ x 8’ x 8’6” | |
| Capacity |
21,000 Litres (+ /- 1%) 24,000 Litres (+ /- 1%) 25,000 Litres (+ /- 1%) 26,000 Litres (+0 /- 1%) |
|
| M.G.W. | 36,000 kg | |
| Tare (est.) | 3,250 kg +/- 3% | |
| Max Payload | 32,750 kg | |
| Working Pressure | 4 Bar | |
| Test Pressure | 6 Bar | |
| Design Temp | -40℃ to +130℃ | |
| Vessel Material |
SANS 50028-7 WNr 1.4402/14404 (C<0.03%), equivalent to 316L Shell: Cold Rolled 2B finish Ends: Hot rolled or Cold Rolled, polished internally to 1.2 Micron CLA |
|
| Shell Thickness | 4.4 nominal | |
| Ends Thickness(B.F) |
4.5 mm nominal 4.6 mm nominal |
|
| Corrosion Allowance | 0.2mm | |
| Frame to Shell | 316 stainless steel | |
| Corner castings | ISO 1161 - 8 off | |
| Vessel Design Code | ASME VIII Div 1 where applicable | |
| Radiography |
Shell Ends |
ASME Spot ASME Full |
| Inspection Agency | LR or BV | |
| Cargo carried | See dangerous cargo lists for UN Portable T11 tank | |
| Stacking | Each container approved for 10 high stacking | |
| Design Approvals | IMDG T11, CFR 49, ADR/RID, CSC, TC, TIR, ISO, UIC, US DOT | |
Product details:
Workshop details:
The following are the producing procedures of iso tank container in factory workshop.
1. We are a professional semi trailer supplier with advanced equipment and high efficiency. The delivery date can meet the requirements of customers.
FAQ:
Q: What kind of Payment can you accept?
A: T / T and L/C is all right to us.
Q: Does your iso tank container meet with international requirement?
A: All of our tank container will be approval by BV or LR or CCS and meet with International Standard.
Q: How long will it takes to ship?
A: Around 15-25 working days.
Q: What kind of Payment can you accept?
A: T / T and L/C is all right to us.
Q: Does your iso tank container meet with international requirement?
A: All of our tank container will be approval by BV or LR or CCS and meet with International Standard.
Q: How long will it takes to ship?
A: Around 15-25 working days.
Q: How about the Color , Specific configuration things?
A: It's up to you , most of them are optional and can be changed by your needs.
