Product Details:
Payment & Shipping Terms:
|
| Nominal Capacity: | 25000 Litre (±0.75%) | Maximum Gross Mass: | 36000 Kgs |
|---|---|---|---|
| Design Code: | ASME VIII DIV. 1 | Nominal Thickness Of Shell: | 5mm |
| Nominal Thickness Of Head: | 6mm | Warranty: | 1 Year |
| Frame Material: | Q235B | Design Temperature Range: | -40℃~ +130 ℃ |
| High Light: | Ethanol 40Ft ISO Tank Container,40 Ft ISO Tank Container 36000Kgs,36000Kgs Liquid Oxygen ISO Container |
||
The ISO TANK(tank container)is a kind of stainless pressure vessel which is installed in the fastening external frame.
The inside of tank containers are mostly made of 316 stainless steel.
Most of the tanks have steam or electric heating, Inert gas protection, decompressor, and other optional equipments for fluid transportation during loading and unloading.
The temperature of the cargo can be precisely controlled by using temperature sensors.This is made of SUS generally.
| Specifications - ISO tank container manufacturers | ||
| Frame Dimensions (L x W x H) | 6058 x 2438 x 2591 mm | |
| Nominal Capacity | 25000 litre (±0.75%) | |
| Maximum Gross Mass | 36000 kgs | |
| Tare Mass | 3510 kg (± 3%) | |
| Design Temperature (Frame & Tank) | -40 to +130 °C | |
| Pressure | Working | 1.70 bar |
| Test | 2.65 bar | |
| Material | Tank (Shell & Ends) | SANS 50028-7 Type 1.4402/1.4404 (C≤0.03%) |
| Frame | SPA-H or equivalent | |
| Insulation | Shell | Rockwool (50kg/m3) 50mm thick on aluminium foil. |
| Ends | Glasswool (16kg/m3) thickness to suit on aluminium foil. | |
| Steam Heating | 6 runs. 110mm width stainless steel 304. 1" BSP inlet, 1" BSP outlet both with captive caps and cable. 4 bar working pressure, 6 bar test with warning decals and markings. A condensate drain is fitted. |
|
| Manhole | 500mm low profile, 8 point fixing with Super Tanktyt Lid seal. | |
| Safety Relief Assembly |
1-off. 2½" BSP Supermaxi Highflow relive, without flameproof gauze. Pressure only set at +4.4 bar (63.8psi). The assembly is situated off centre on a tangential tank pad. |
|
|
Air Inlet
assembly |
DN 40 ball valve terminating with 1½" BSP connection and cap. The assembly is situated off centre on a tangential tank pad. |
|
| Top Discharge | DN80 stainless steel 316 tank pad with a blind flange. The assembly is fitted on centre on a horizontal tank pad. |
|
| Bottom Discharge |
DN80 45° Univalve Internal Footvalve part no. TBC fitted with an integrated butterfly valve terminating with a 3" BSP spigot with 3" BSP blind cap and chain. |
|
| Thermometer | A surface mounted analogue type is fitted to the rear end dished end of the tank. Dual scale -40°C to +160°C / -40°F to 320°F. The thermometer is fitted with a protection bar. |
|
| Document holder |
A clear plastic document holder ø110mm is fitted to the rear right hand side beam. A drain hole is provided at the lowest point. |
|
| Calibration | A calibration plate marked in cm/litres is fitted on the spillbox side wall. No calibrated stainless steel grade dipstick and bracket fitted. |
|
| Design Code | ASME VIII DIV. 1 | |
| Approval | IMDG, US DOT CFR 49, RID/ADR, CSC, TC, TIR / Customs, UIC, ISO 1496/3 | |

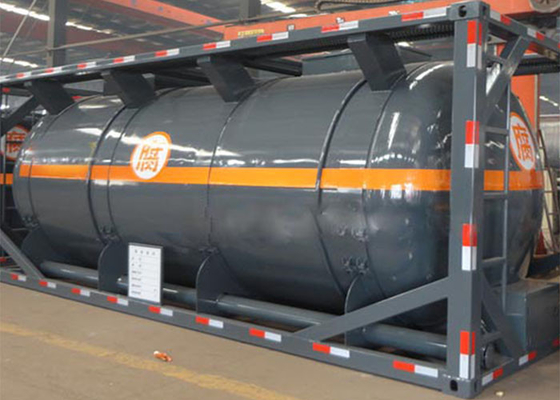

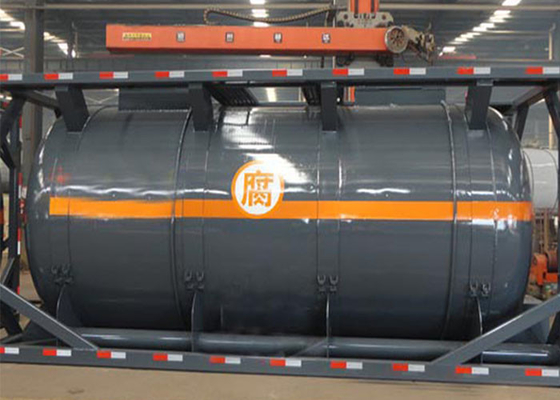

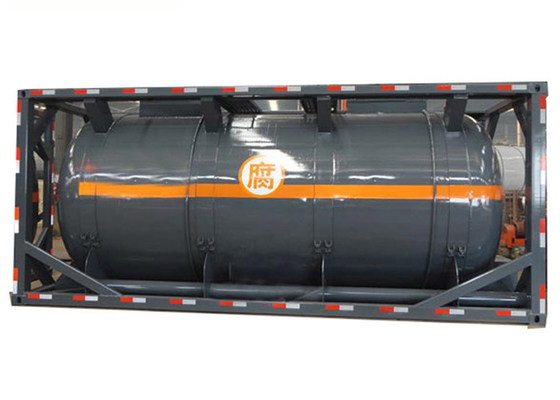

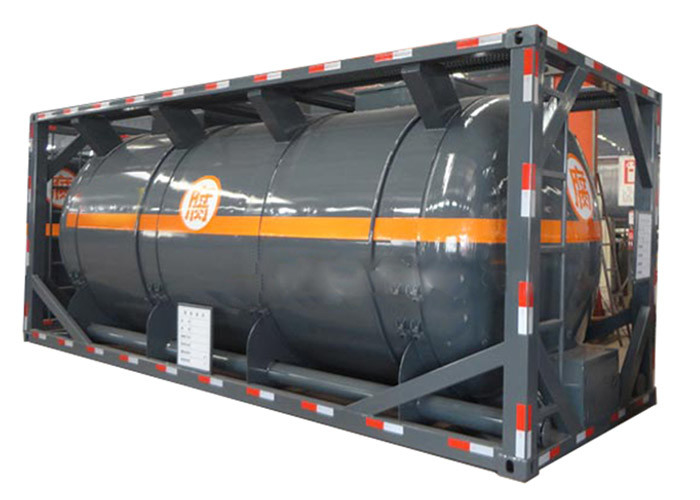

Product details:
Workshop details:
The following are the producing procedures of iso tank container in factory workshop.
1. We are a professional semi trailer supplier with advanced equipment and high efficiency. The delivery date can meet the requirements of customers.
FAQ:
Q: What kind of Payment can you accept?
A: T / T and L/C is all right to us.
Q: Does your iso tank container meet with international requirement?
A: All of our tank container will be approval by BV or LR or CCS and meet with International Standard.
Q: How long will it takes to ship?
A: Around 15-25 working days.
Q: What kind of Payment can you accept?
A: T / T and L/C is all right to us.
Q: Does your iso tank container meet with international requirement?
A: All of our tank container will be approval by BV or LR or CCS and meet with International Standard.
Q: How long will it takes to ship?
A: Around 15-25 working days.
Q: How about the Color , Specific configuration things?
A: It's up to you , most of them are optional and can be changed by your needs.
