Product Details:
Payment & Shipping Terms:
|
| Frame Size: | 20/40 Ft | Maximum Gross Mass: | 36000 Kgs |
|---|---|---|---|
| Compartment: | Single Compartment | Hydro.Test Pressure(MPa): | 2.18 |
| Walkway On The Top: | Anti-Skid Net Spread On Both Side | Warranty: | 1 Year |
| Strengthen Ribbers: | Strengthen Ribbers | Leakage Test Pressure(MPa): | 1.38 |

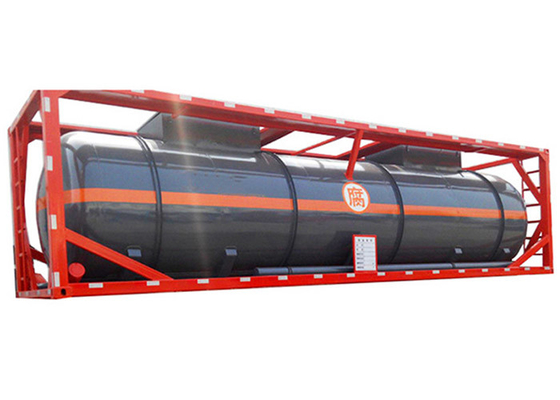

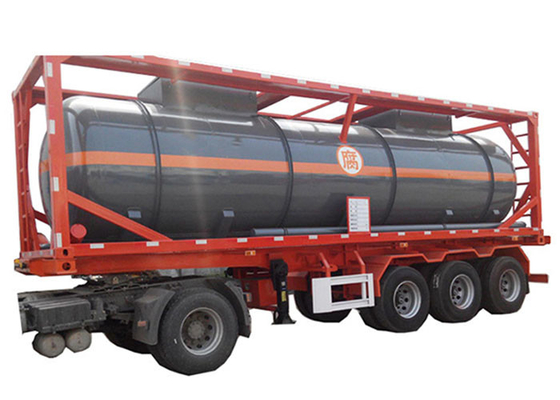

| High Light: | CCS ISO Shipping Container Tanks,Shipping Container Tanks 40FTr,40FT Bulk Liquid Container |
||
1. Inner layer - made of 6 or 8 mm thick Q235-B steel plate, compared with ordinary 5 mm thick single-layer tank, the strength is greatly improved;
2. Outer layer - tempered glass fiber thickness of 4.0mm or more, good compressive and seismic resistance. It has strong corrosion resistance and corrosion resistance.
3. Unique technology is adopted between the inner and outer layers to make it reach a gap of 0.1-1mm, so as to eliminate hidden dangers from the root.
4. Leak detector 24 hours to monitor, to prevent leakage caused by security risks.
| External Dimension | 6058 x 2438 x 2591 mm | |
| Tare Weight | 3510 kg (± 3%) | |
| M. G. W | 36000 kgs | |
| Nominal Capacity | 25000 litre (±0.75%) | |
| Design Temperature | -40 to +130 °C | |
| Pressure | Working | 4.0 bar |
| Test | 6.0 bar | |
| Material | Tank (Shell & Ends) | SANS 50028-7 Type 1.4402/1.4404 (C<0.03%) |
| Frame | SPA-H or equivalent | |
| Insulation | Shell | Rockwool (50kg/m3) 50mm thick on aluminium foil. |
| Ends | Glasswool (16kg/m3) thickness to suit on aluminium foil. | |
| Design Code | ASME VIII DIV. 1 | |
| Approval | IMDG, US DOT CFR 49, RID/ADR, CSC, TC, TIR / Customs, UIC, ISO 1496/3 | |
Product details:
Advantages:
1. Factory direct exporting, with high quality and lower price.
2. We are a manufacturer in China, with 730,000 square meters of factory and more than 30,000 units annual output.
3. Excellent after-sale service.
FAQ:
Q: What kind of Payment can you accept?
A: T / T and L/C is all right to us.
Q: Does your iso tank container meet with international requirement?
A: All of our tank container will be approval by BV or LR or CCS and meet with International Standard.
Q: How long will it takes to ship?
A: Around 15-25 working days.
Q: What kind of Payment can you accept?
A: T / T and L/C is all right to us.
Q: Does your iso tank container meet with international requirement?
A: All of our tank container will be approval by BV or LR or CCS and meet with International Standard.
Q: How long will it takes to ship?
A: Around 15-25 working days.
