Product Details:
Payment & Shipping Terms:
|
| Frame Size: | 20 Ft | Nominal Capacity: | 22000L |
|---|---|---|---|
| Color: | Customized | Max Gross Weight: | 26000 Kg |
| Transportation/Storage Material: | Asphalt | Tare Weight: | 4.85tons |
| Working Pressure: | 0.9bar | Radiographic Inspection: | 100% X-RAY |
| High Light: | 20FT ISO Liquid Tank Container,Liquid Tank Container 22000 L,22000 L Liquid Transport Containers |
||

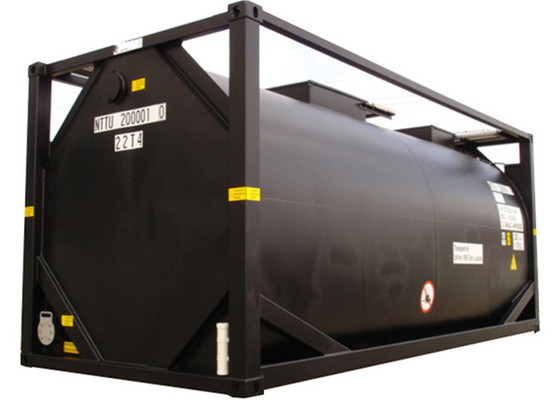

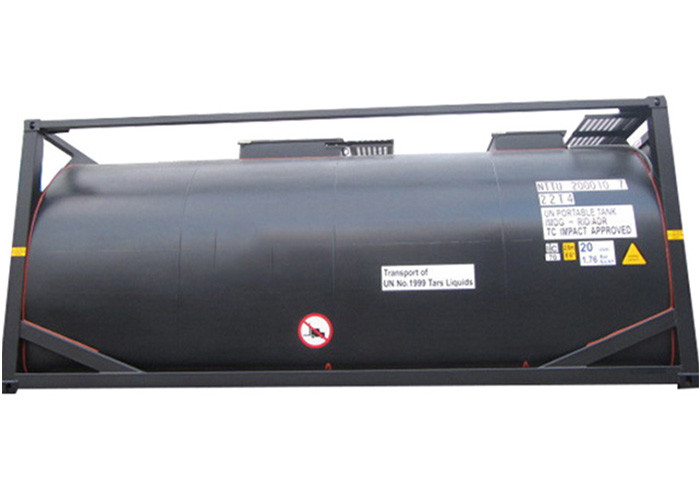

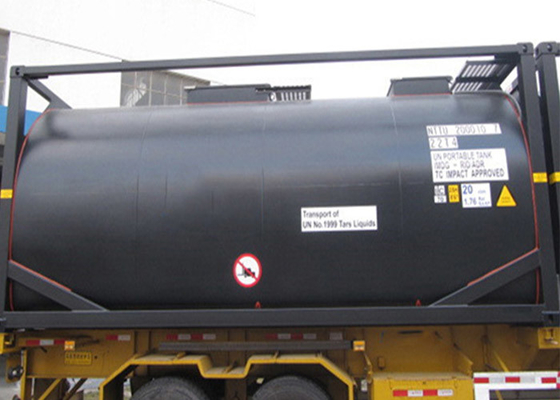

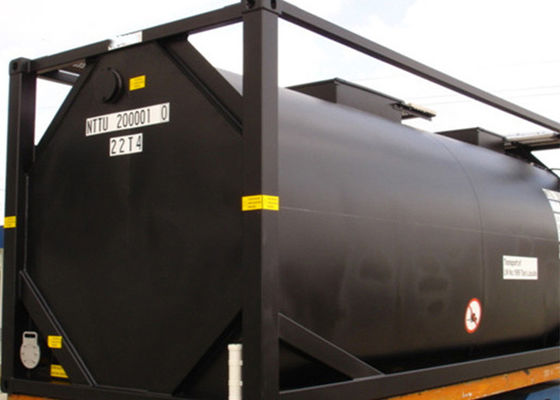

Bitumen container is a special container for transporting liquid goods such as food, medicine and chemical products.The structure is a liquid tank fixed in a metal frame.It consists of two parts: the tank body and the box body frame.
The cargo is loaded into the loading hole of the top of the tank, and when the cargo is discharged, the cargo hole is discharged or sucked out from the top.The frame is made of rectangular steel, with high quality and light intensity. It is suitable for road, road and railway asphalt transportation.
|
Outer Dimension
|
Length(mm) | 6058mm |
| Width(mm) | 2438mm | |
| Height(mm) | 2591mm | |
| Transportation/Storage material | Asphalt | |
| Max gross weight | 26000 kg | |
| Tare weight | 4.85tons | |
| Payload | 21000 kg | |
| Nominal Capacity | 22000L | |
| UN Code. | 1999 | |
| Tank Guide | T3 | |
| Design Standards | IMDG-CODE. GB150-98 ASMI-1 JB/T4781-2005 | |
| Recognized Register | CCS,Basis: IMDG. CSC. TIR. UIC. RID.,ADR/IMO/ISO(meet Shipping requirement) | |
| Tank Type | 20FT | |
| Tank Shape | Column Shape, Horizontal | |
| Design temperature | -40 ~ +130 ºC | |
| Design pressure | 1.75bar | |
| Design temperature | -40ºC~230ºC | |
| Working Pressure | 0.9bar | |
| Working temperature | 230ºC | |
| Test pressure | 2.6Bar, Hydraulic pressure test | |
| Corrosion Degree | 0 | |
| Gastight Test Pressure | 1.2bar | |
| Vacuum Test Pressure | 0.21Bar | |
| Welding Joint Efficiency | 1.0 | |
| Radiographic Inspection | 100% X-RAY | |
| Tank Materials | GBQ345B, High quality mild steel | |
| Thickness (mm) | 5.0 | |
| End Enclosure (mm) | 5.0 | |
| Washplate(mm) | 4mm, 2 compartments 1 bin | |
Product details:
Advantages:
1. Factory direct exporting, with high quality and lower price.
2. We are a professional supplier with advanced equipment and high efficiency. The delivery date can meet the requirements of customers.
FAQ:
Q: What kind of Payment can you accept?
A: T / T and L/C is all right to us.
Q: Does your iso tank container meet with international requirement?
A: All of our tank container will be approval by BV or LR or CCS and meet with International Standard.
Q: How long will it takes to ship?
A: Around 15-25 working days.
Q: How about the Color , Specific configuration things?
A: It's up to you , most of them are optional and can be changed by your needs.
